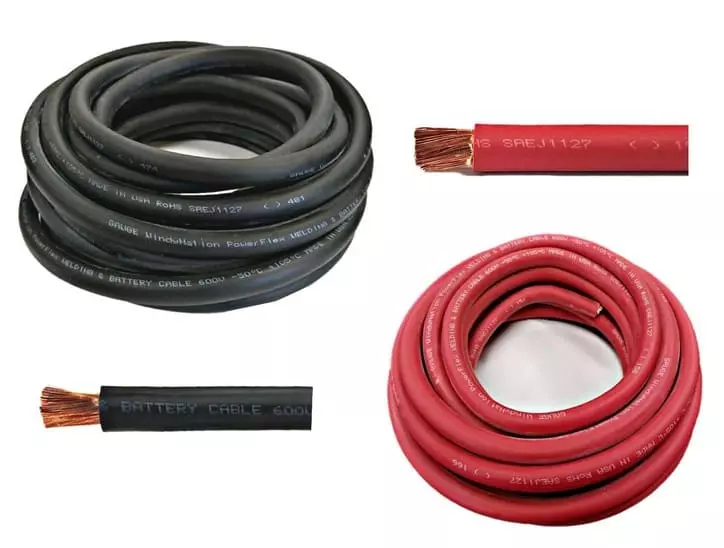

0 Gauge Battery Wire Manufacturer & Custom Solutions
Custom 0 Gauge Battery Wire from wire harness Manufacturer. Linkwings can provide custom 0 Gauge Battery Wire solutions for your business.

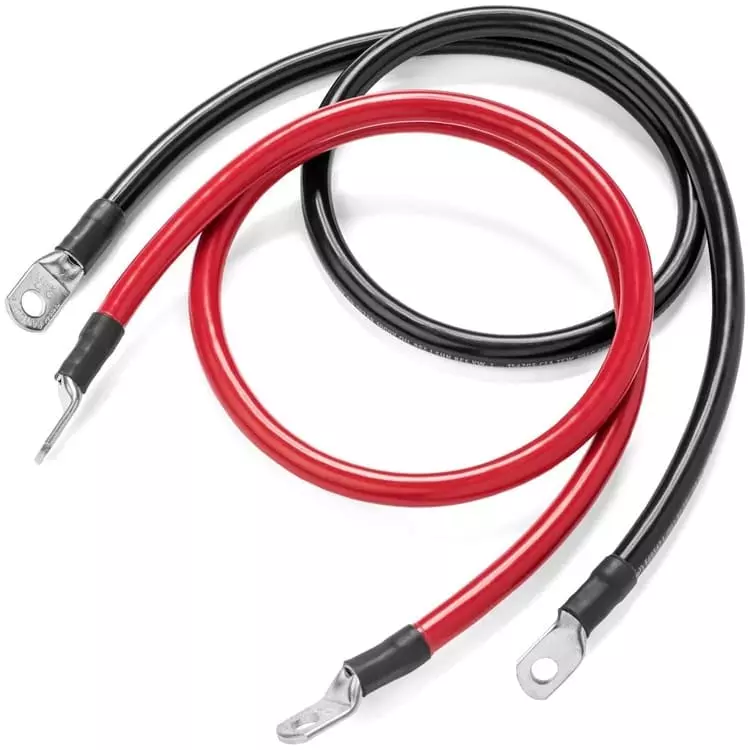

What is 0 Gauge Battery Wire?
0 Gauge Battery Wire is a heavy-gauge conductor cable that complies with the American Wire Gauge (AWG) standard. The conductor diameter is approximately 8.25 mm, with a cross-sectional area of nearly 53.5 mm². Its notable features include ultra-low resistance and high current-carrying capacity, enabling it to safely transmit over 240A of direct current, making it ideal for applications requiring high-power supply.
At Linkwings, our 0 Gauge Battery Wire is manufactured using high-purity oxygen-free copper (OFC) or tin-plated copper in a multi-strand twisted structure. Each conductor strand diameter is precisely controlled between 0.20–0.30 mm to ensure a balance between flexibility and conductivity. Whether for automotive modifications, marine power systems, or solar energy storage cabinets, 0-gauge battery wire maintains low voltage drop and high transmission efficiency over long distances.

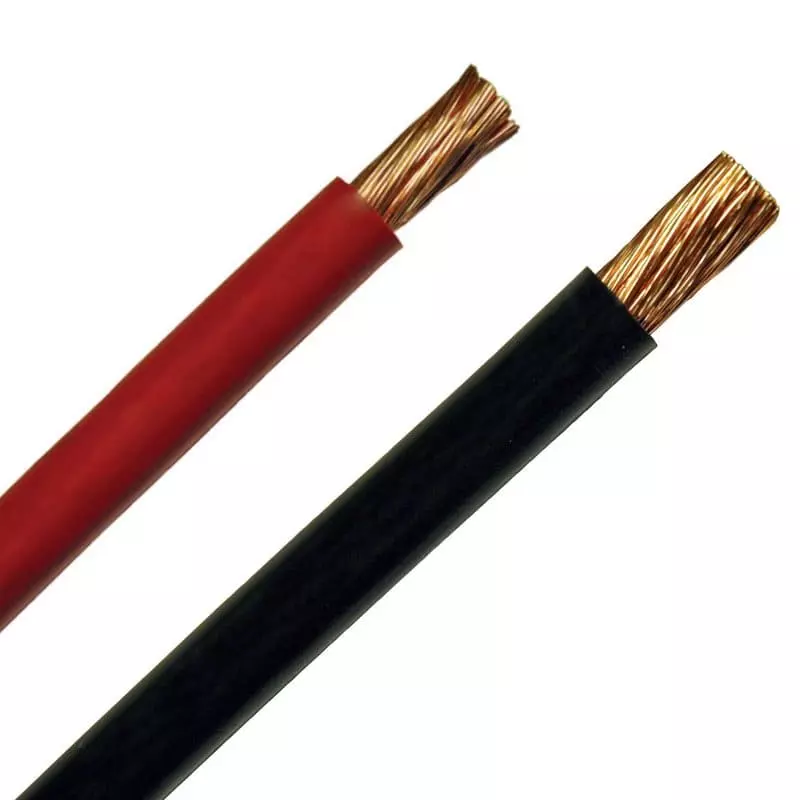

0 Gauge Battery Wire Buying Guide
Choosing the right 0-gauge battery wire is not just a matter of looking at the “thickness”; it also requires comprehensive consideration of factors such as the application scenario, current requirements, wiring length, and environmental conditions.
Determine the appropriate wire gauge based on current requirements
- Basic principle: 0 AWG (cross-sectional area of approximately 53.5 mm²) can carry 240–260 A of direct current at normal temperatures.
- Short-term surge currents : Can withstand higher peak currents, but must ensure that the continuous operating current does not exceed the rated value.
- Recommended approach: Provide your current value and operating environment temperature, and we can perform current-carrying capacity and voltage drop calculations for you to avoid selecting a cable that is too small (causing overheating) or too large (increasing costs).
Selecting the appropriate conductor material
- Oxygen-free copper (OFC): Low resistance, high conductivity, suitable for most land and indoor applications.
- Tinned copper: Salt spray resistant, moisture and heat resistant, suitable for marine, coastal, and outdoor equipment.
Linkwings recommendation: If the project environment is humid or highly corrosive, prioritize the tin-plated copper version, which can extend the service life by 2–3 times.
Selecting the appropriate insulation material
- PVC: Low cost, good flexibility, flame retardant. Commonly used in conventional indoor and automotive wiring harnesses.
- XLPE: High temperature resistance (125°C), high mechanical strength. Commonly used in engine compartments and high-temperature environments.
- EPDM: UV-resistant, ozone-resistant, and low-temperature resistant (down to -50°C). Commonly used in ship decks and outdoor equipment.
Linkwings recommendation: Choose XLPE for high-temperature environments, EPDM for outdoor weather resistance, and PVC for standard automotive applications.
Consider installation method and flexibility
- For narrow spaces or frequently bent lines, it is recommended to choose a multi-strand fine stranded structure for higher flexibility.
- For fixed installation lines, conductors with fewer strands and a tighter structure can be used to improve mechanical shock resistance.
Colors and Markings
- Red is commonly used for positive terminals, black for negative terminals, and blue or yellow for special system identification.
- Linkwings can provide customized colors and printed markings for easy maintenance and repair during the later stages of a project.
Technical Specs Table
| Specification | Linkwings Standard / Custom Options |
|---|---|
| Wire Gauge | 0 AWG |
| Conductor Type | High Purity OFC or Tinned Copper, Multi-Stranded (0.20–0.30 mm strand dia.) |
| Cross Section | 53.5 mm² |
| Conductor Dia. | 8.25 ± 0.05 mm |
| Insulation Material | PVC / XLPE / EPDM |
| Insulation Thickness | 1.8 – 2.5 mm |
| Overall Diameter | 11.8 – 13.2 mm |
| Rated Voltage | 600V / 1000V |
| Rated Current (DC) | 240 – 260 A (Based on NEC, depends on temp & installation) |
| Operating Temp. Range | -50℃ ~ 105℃ |
| Resistance | ≤ 0.00032 Ω/m (at 20℃) |
| Color Options | Red / Black / Blue / Custom |
| Certifications | UL, RoHS, ISO9001 |
| Packaging | 100 m Roll / Wooden Reel / Custom Length |

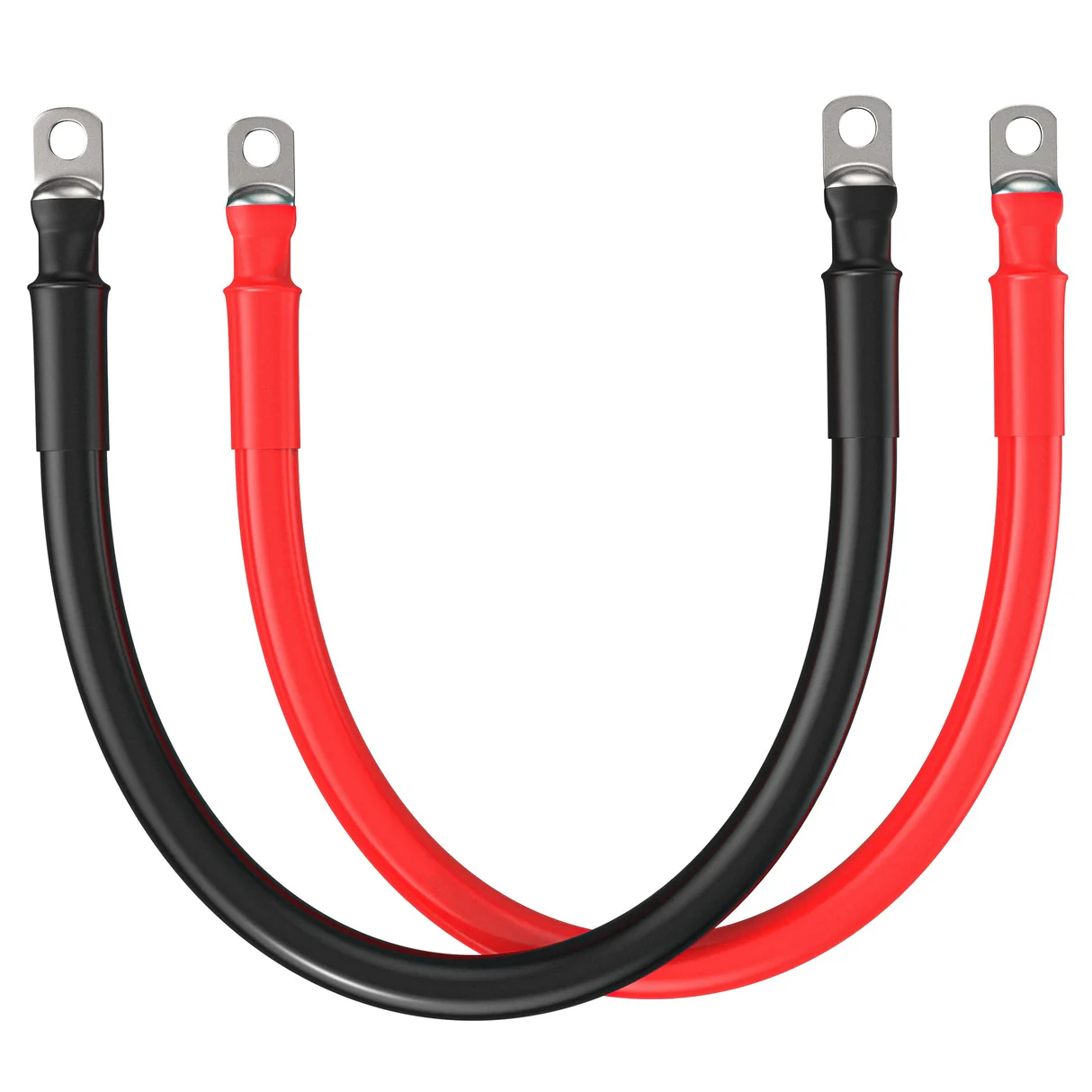

Why choose 0 Gauge Battery Wire?
1. High current carrying capacity
Suitable for high-load applications such as drive starter motors, high-power inverters, and industrial DC equipment. Ensures stable power supply during instantaneous startup and continuous operation.
2. Low resistance, low loss
The large cross-sectional area of the conductor significantly reduces the resistance per unit length (approximately 0.00032 Ω/m), effectively minimizing heat generation and energy loss in the circuit.
3. Durable Insulation Protection
Linkwings offers a variety of insulation materials, including PVC, XLPE, and EPDM, to meet environmental requirements ranging from standard temperatures to high temperatures (105°C) and even extreme cold (-50°C). These materials feature wear resistance, oil resistance, and UV resistance.
4. Excellent flexibility and ease of installation
The multi-strand twisted structure ensures the cable’s flexibility, enabling easy installation even in confined engine compartments or curved wiring configurations.
5. Suitable for various harsh environments
The tin-plated copper version maintains long-term stable conductivity in high-humidity, salt fog, and chemical corrosion environments, making it particularly suitable for marine and coastal applications.
Applications of 0 Gauge Battery Wire
1. Car Starting and Modified Audio Systems
Application Features: Car starter motors need to provide extremely high currents (typically over 200A) in a very short time. Modified high-power audio systems are extremely sensitive to power supply stability and voltage fluctuations.
Linkwings Solution:
- Use high-purity oxygen-free copper (OFC) conductors to ensure low impedance and reduce voltage drop during startup.
- Provides high-temperature-resistant PVC or XLPE insulation to withstand engine compartment temperatures exceeding 80°C.
- Offers pre-assembled cables with crimped copper terminals and heat-shrink tubing for quick and easy installation.
2. Ship and Yacht Battery Connections
Application Features: Long-term exposure to high humidity, salt spray, and corrosive environments requires extremely high corrosion resistance of conductors.
Linkwings Solution:
- Select tin-plated copper multi-strand twisted structure to prevent seawater salt spray corrosion and extend service life.
- Features EPDM insulation, resistant to UV and ozone, suitable for use below deck and outdoors.
- Passes IEC 60092 marine cable testing, ensuring compliance with international marine standards.
3. Solar energy storage and inverter connection
Application characteristics: High-power direct current needs to be transmitted between the energy storage system and the inverter, and the wiring length may be long, making it sensitive to voltage drop.
Linkwings solution:
- Provides low-resistance conductors with a cross-sectional area of 53.5 mm² to reduce energy loss during long-distance transmission.
- Optional high-temperature-resistant XLPE insulation maintains insulation stability in outdoor high-temperature environments.
- Provide wire diameter and voltage drop calculation services based on customer system current and distance to ensure compatibility
4. Industrial Backup Power and UPS Systems
Application Features: UPS and backup power systems require stable high-current power supply, and the wiring environment may involve server rooms, factories, or high-dust areas.
Linkwings Solutions:
- Provides PVC insulation with a flame-retardant rating of VW-1 to enhance data center safety
- Conductors are uniformly stranded, suitable for installation in cable trays and cable ducts
- Customized length cutting and labeling are available to facilitate wiring for multiple devices
FAQs about 0 Gauge Battery Wires
1. What is the maximum current carrying capacity of a 0 AWG battery wire?
According to the NEC (National Electrical Code) reference standard, the DC rated current of 0 AWG battery wire under normal temperature (30°C) conditions is approximately 240A–260A. If the installation environment temperature is high or the wiring distance is long, it is recommended to use thicker wire gauge or high-temperature resistant insulation materials to reduce voltage drop and heat generation risks. Linkwings can provide current and voltage drop calculation services to ensure more precise wire gauge selection.
2. What is the difference between tin-plated copper and pure copper?
- Pure copper (OFC): Excellent electrical conductivity, suitable for most land-based environments and indoor installations.
- Tin-plated copper: A layer of tin is plated onto the surface of each copper wire, significantly improving corrosion resistance, particularly suitable for marine, coastal, and humid environments.
Linkwings employs an overall hot-dip plating process in the production of tin-plated copper conductors, ensuring a uniform coating that adheres firmly and is resistant to peeling.
3. What colors are available for 0-size battery wires?
Linkwings keeps red, black, and blue in stock for easy differentiation between positive and negative poles or different system lines. Custom colors (such as yellow, green, and orange) and striped markings are also available to meet specific industry wiring standards or customer branding requirements.
