1.27mm Female Header – Precision Connector Manufacturer
The 1.27mm Female Header is a compact, high-density female connector. As a professional 1.27mm Female Header Manufacturer, Linkwings offers a full range of standard products and customized solutions, ensuring reliable and efficient connections for diverse applications.

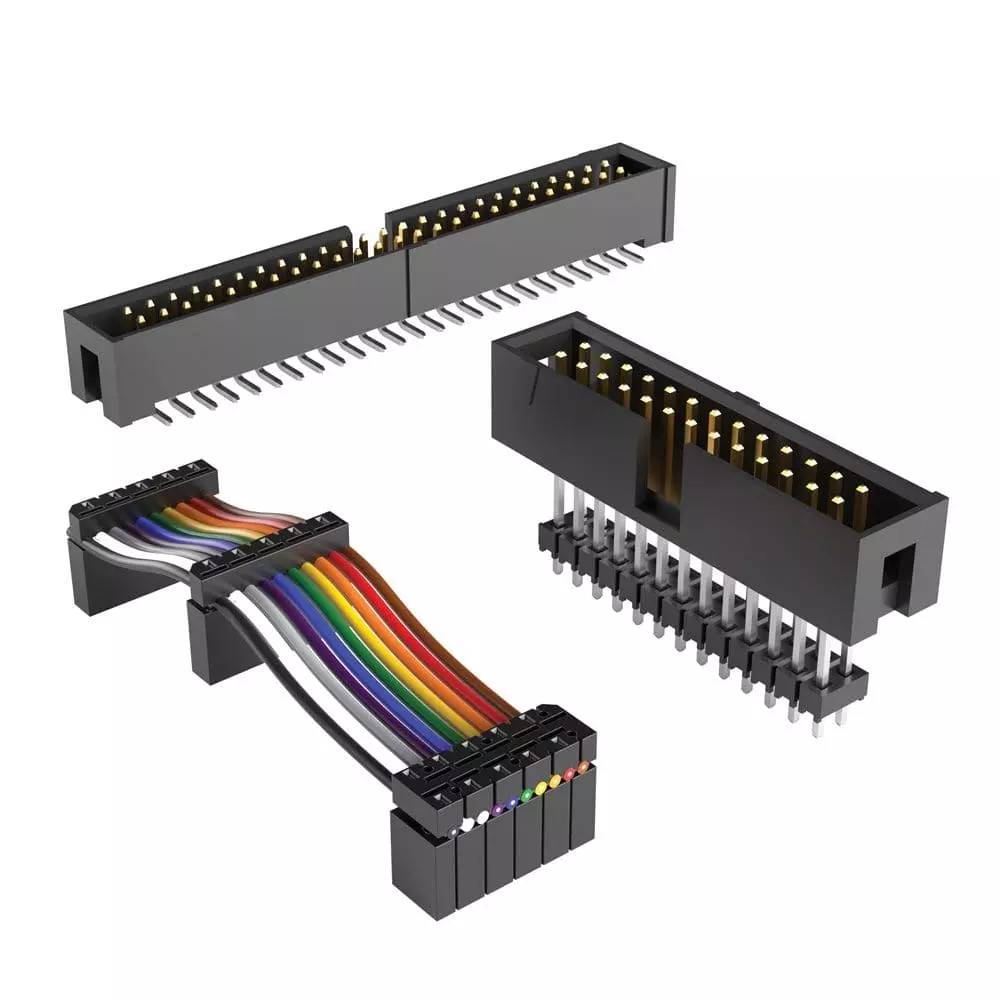

What is a 1.27mm Female Header?
A 1.27mm Female Header is a precision female connector with a 1.27mm pin pitch. It is commonly paired with a corresponding 1.27mm Pin Header to establish electrical connections between boards, wires, and modules. Compared to common 2.54mm pitch female headers, the 1.27mm Female Header offers a smaller footprint, making it ideal for high-density routing and compact electronic device designs. Its design emphasizes high contact reliability, supporting both signal transmission and low-current power connections. Consequently, it is widely used in products such as laptops, routers, industrial modules, and automotive electronics.
As an experienced 1.27mm Female Header Manufacturer, Linkwings not only offers standard female header products but also provides customization based on customer requirements. This includes pin count, arrangement (single row/dual row/ multi-row), mounting methods (through-hole/SMT/angled), terminal plating (gold/tin/nickel), and plastic housing materials (PBT/LCP). This flexible customization ensures Linkwings’ products deliver stable, reliable, and high-performance connections across diverse applications including consumer electronics, communication equipment, industrial control systems, and medical devices.
1.27mm Female Header Types and Optional Configurations
As a precision connector, the 1.27mm Female Header offers multiple forms and configurations for various applications due to its fine pitch and high-density design. Linkwings provides a comprehensive product line and supports customer customization requirements.

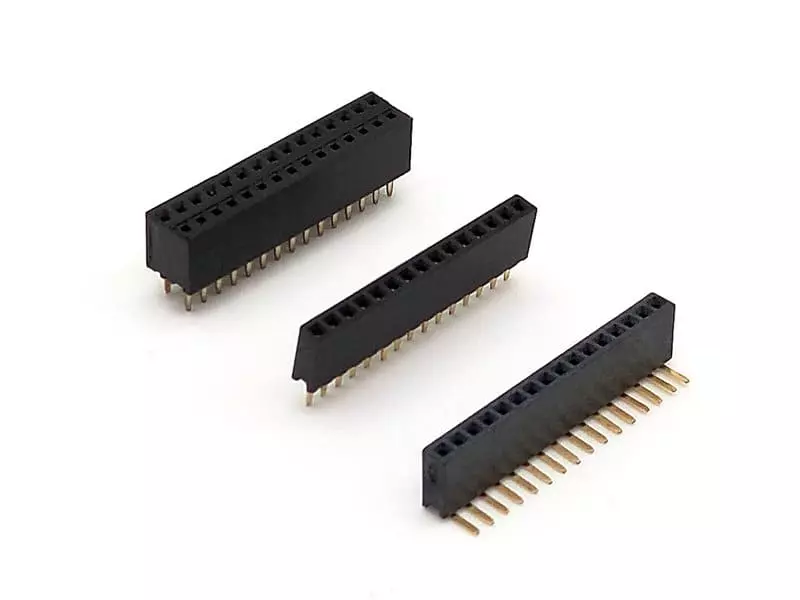

1.27mm Female Header Types
Arrangement: Single-row, dual-row, or multi-row configurations to accommodate varying signal channels and spatial designs.
Mounting Options:
- Through-Hole (THD): High mechanical strength, suitable for traditional PCB soldering.
- Surface Mount Technology (SMT): Facilitates automated production and saves space.
- Right Angle: Suitable for specialized board-to-board connections or space-constrained routing.
Height Options: Low-profile, standard, or tall variants to accommodate diverse equipment structural requirements.
Optional Configurations
- Pin Count Range: From 2-pin to 100+ pins, offering flexible support for customer designs.
- Terminal Material & Plating: High-quality copper alloys with multiple surface treatments including gold, tin, and nickel plating to ensure contact performance and corrosion resistance across diverse applications.
- Plastic Housing Material: PBT (standard type), LCP (high-temperature resistant, suitable for reflow soldering processes).
- Customization Options: Specially shaped female connectors, reinforced designs, anti-misinsertion features, or unique packaging methods available upon request.
Technical Specifications of 1.27mm Female Header
| Category | Specifications & Features |
|---|---|
| Pitch | 1.27mm |
| Pin Count | 2 Pin ~ 100+ Pin, customizable |
| Row Options | Single row, dual row, multi-row |
| Mounting Type | Through Hole (THD), Surface Mount (SMT), Right Angle |
| Terminal Material | High-quality copper alloy |
| Plating Options | Gold (high reliability), Tin (cost-effective), Nickel (corrosion-resistant) |
| Housing Material | PBT (standard), LCP (high-temperature resistant, reflow soldering capable) |
| Electrical | Rated current: 0.5A ~ 1.5A; Rated voltage: 50V ~ 200V; Contact resistance: ≤20mΩ; Insulation resistance: ≥1000MΩ |
| Mechanical | Mating cycles ≥ 500; Operating temperature: -40℃ ~ +105℃ |
| Compliance | UL, RoHS, REACH, ISO9001, IATF16949 (Automotive), ISO13485 (Medical) |
FAQs about 1.27mm Female Header
1. What is the difference between a 1.27mm female header and a 2.54mm female header?
Answer: The primary difference lies in the pin pitch. The 1.27mm female header is more compact, making it suitable for high-density, miniaturized designs. In contrast, the 2.54mm female header is more commonly used in standardized applications with less stringent space requirements and can handle relatively higher current loads.
2. What mounting options are available for your 1.27mm Female Header?
Answer: Linkwings offers multiple mounting options, including Through Hole, Surface Mount Technology (SMT), and Right Angle configurations. We support single-row, dual-row, and multi-row designs to accommodate diverse PCB layout requirements.
3. What are the electrical specifications of the 1.27mm Female Header?
Answer: Typical parameters include: rated current 0.5A to 1.5A, rated voltage 50V to 200V, contact resistance ≤ 20mΩ, and insulation resistance ≥ 1000MΩ. These specifications adequately meet the requirements for diverse applications such as consumer electronics, communications, and industrial control systems.
4. Can custom specifications be accommodated?
Answer: Yes. We support custom services including special pin counts, non-standard female headers, different plastic housing materials, high-temperature resistant versions, and anti-reverse insertion designs. As a professional 1.27mm female header manufacturer, Linkwings provides optimal solutions for diverse application scenarios.
